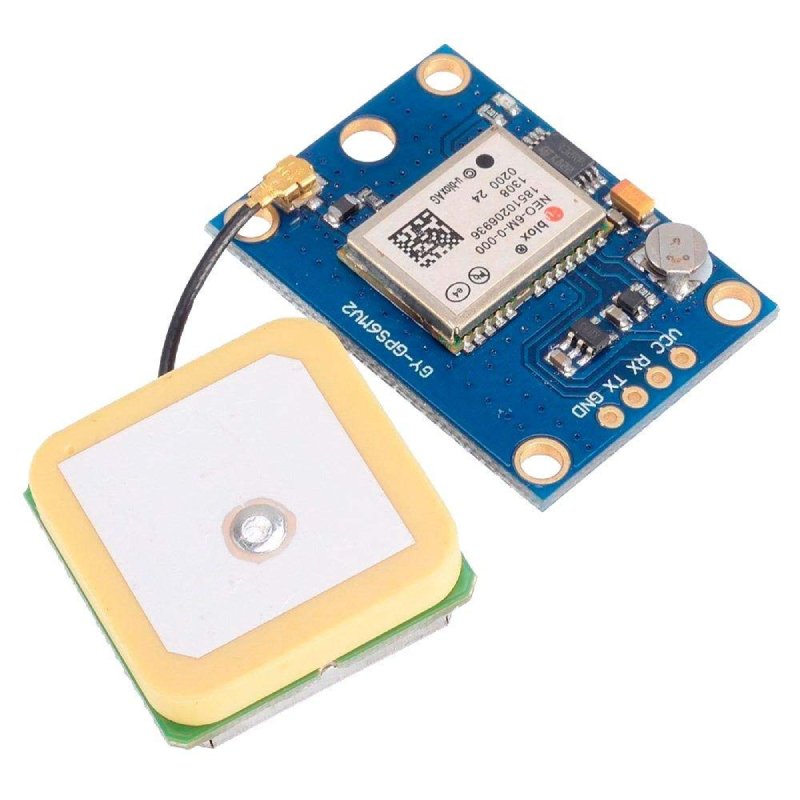

This features the u-blox NEO-6M arduino GPS module with antenna and built-in EEPROM. This is compatible with various flight controller modules that provide GPS computer test software.
This board features the u-blox NEO-6M GPS module with antenna and built-in EEPROM. This is compatible with various flight controller boards designed to work with a arduino GPS module.
Specifications
- Power Supply Range: 3 V to 5 V
- Model: GY-GPS6MV2
- Ceramic antenna
- EEPROM for saving the configuration data when powered off
- Backup battery
- LED signal indicator
- Antenna Size: 25 x 25 mm
- Module Size: 25 x 35 mm
- Mounting Hole Diameter: 3 mm
- Default Baud Rate: 9600 bps
Downloads
The NEO-6 module series is a family of stand-alone GPS receivers featuring the high performance u-blox 6
positioning engine. These flexible and cost effective receivers offer numerous connectivity options in a miniature
16 x 12.2 x 2.4 mm package. Their compact architecture and power and memory options make NEO-6 modules
ideal for battery operated mobile devices with very strict cost and space constraints.
The 50-channel u-blox 6 positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. The dedicated
acquisition engine, with 2 million correlators, is capable of massive parallel time/frequency space searches,
enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and
mitigates multipath effects, giving NEO-6 GPS receivers excellent navigation performance even in the most
challenging environments.
